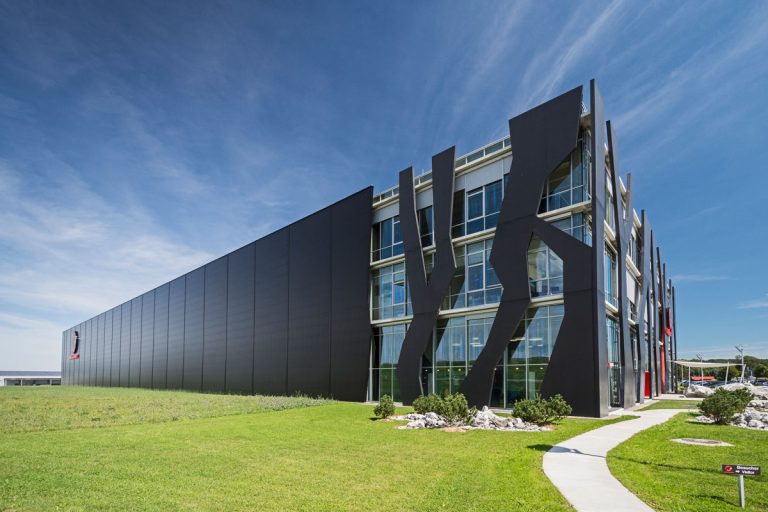

Roof and facade panels

The advantages of building with roof and facade panels are very good thermal and sound insulation of the building and simple, fast installation on a pre-prepared structure. Roof and facade panels are also often called insulated sandwich panels.

Roof and facade panels consist of sheet metal and an insulation core. The underside of the panels can be made of sheet metal, aluminium foil, cardboard, etc.

We offer roof and facade panels from various manufacturers, which differ according to the type of insulation core, sheet metal thickness and zinc coating on the sheet metal, which can range from 140 g/m² – 275 g/m². The most common insulation cores are PUR/PIR insulation core and stone wool. Roof and facade panel thicknesses range from 10 mm all the way to 240 mm.

Advantages of roof and facade panels according to the insulation core

PUR

PUR has better insulation performance compared to stone wool.

PIR

Compared to stone wool, PIR has better insulation performance and also better fire resistance compared to a PUR insulation core.

Stone wool

Stone wool has better fire resistance compared to a PUR/PIR core.

Sheet thickness

Roof and facade panels are available in sheet metal thicknesses from 0.4 – 0.7 mm.

Roof panels

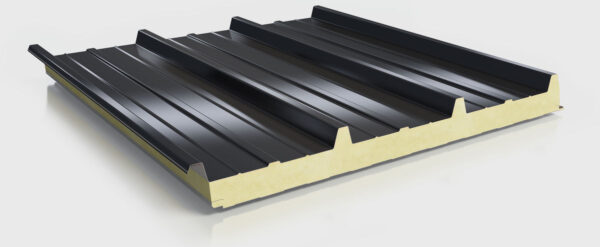

Roof panels with PIR/PUR insulation core

Roof panels are used as roofing for industrial and commercial buildings, outdoor canopies, garden sheds and also residential buildings.

Roof panels with PUR/PIR insulation and sheet metal on the top side and aluminium foil on the underside:

Insulation filling in thicknesses from 10 mm – 150 mm (10, 15, 20, 30, 40, 50, 60, 80, 100, 120, 150 mm)
Panel width 1000 mm
The minimum pitch for all roof panels is 7%; special installation solutions also allow installation at a pitch of 5%.
Standard colours are: RAL 7016, RAL 8019, RAL 9002, RAL 3009; other colours are also possible, e.g.: RAL 9006, RAL 9007, etc.

Roof panel with PUR/PIR insulation with sheet metal on the top and underside:

30 mm – 200 mm (30, 40, 50, 60, 80, 100, 120, 150, 180, 200 mm)
Panel width 1000 mm
The minimum pitch for all roof panels is 7%; special installation solutions also allow installation at a pitch of 5%.
Standard colours are: RAL 7016, RAL 8019, RAL 9002, RAL 3009; other colours are also possible, e.g.: RAL 9006, RAL 9007, etc.

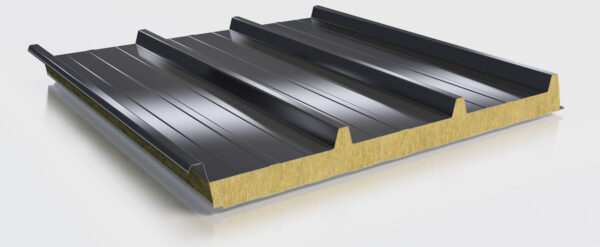

Roof panels with stone wool

You can choose between roof panels with stone wool with the following technical characteristics:

Sheet metal on the top and underside
Insulation filling in thicknesses from 50 mm – 240 mm (50, 60, 80, 100, 120, 150, 180, 200, 220, 240 mm)
Panel width 1000 mm
Standard colours are: RAL 7016, RAL 8019, RAL 9002, RAL 3009; other colours are also possible, e.g.: RAL 9006, RAL 9007, etc.

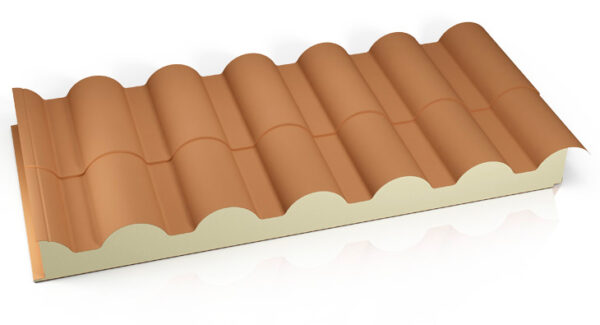

Roof panel in the shape of a monk-and-nun tile

A special installation solution for roof panels is in the shape of a roof tile (monk-and-nun tile), used mainly in the coastal region.

You can choose between roof panels in the shape of a roof tile with the following technical characteristics:

Available in thicknesses 40 mm, 50 mm and 100 mm
The lengths or dimensions of the roof panel in the shape of a monk-and-nun tile can only be supplied in lengths that are multiples of 350 mm (350 mm, 700 mm, 1050 mm …)
Standard colours are RAL 8004 and RAL 7016
Panel width 1000 mm
Standard colours are: RAL 8019, RAL 9002, RAL 3009; other colours are also possible, e.g.: RAL 9006, RAL 9007, etc.

Roof panel in the shape of a monk-and-nun tile

Facade panels

Facade panels with PIR/PUR insulation core

Facade panels are used as facade cladding for industrial and commercial buildings, cold rooms, partition walls, outdoor canopies, garden sheds and also residential buildings.

You can choose between facade panels with PUR/PIR insulation with the following technical characteristics:

Facade panel with visible fastening, i.e. a visible joint, shown in the sketch.
Thicknesses from 25 mm – 240 mm (25, 30, 40, 50, 60, 80, 100, 120, 150, 180, 200 mm)
Panel width 1000 mm
Facade panel with hidden fastening, i.e. a hidden joint, shown in the sketch.
Thicknesses from 40 mm – 240 mm (40, 50, 60, 80, 100, 120, 150, 180, 200 mm)
Panel width 1000 mm
Standard colours are: RAL 7016, RAL 8019, RAL 9002, RAL 3009; other colours are also possible, e.g.: RAL 9006, RAL 9007, etc.

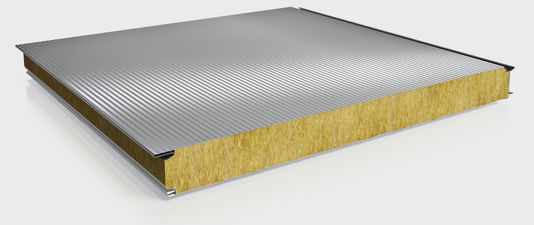

Facade panels with stone wool

You can choose between facade panels with STONE WOOL with the following technical characteristics:

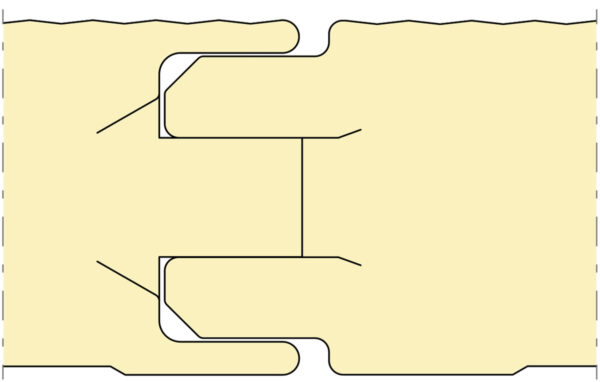

Facade panel with visible fastening, i.e. a visible joint, shown in the sketch.
Thicknesses from 50 mm – 240 mm (50, 60, 80, 100, 120, 150, 180, 200, 220, 240 mm)
Panel width 1000 mm

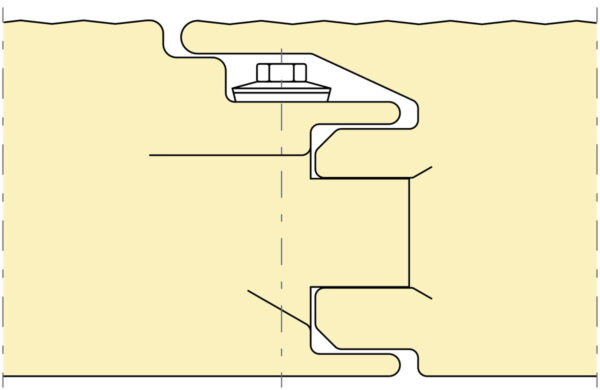

Facade panel with hidden fastening, i.e. a hidden joint, shown in the sketch.
Thicknesses from 50 mm – 240 mm (50, 60, 80, 100, 120, 150, 180, 200, 220, 240 mm)
Panel width 1000 mm
Standard colours are: RAL 7016, RAL 8019, RAL 9002, RAL 3009; other colours are also possible, e.g.: RAL 9006, RAL 9007, etc.

Facade profiles

Euro profile

Smooth profile

Micro-lined profile

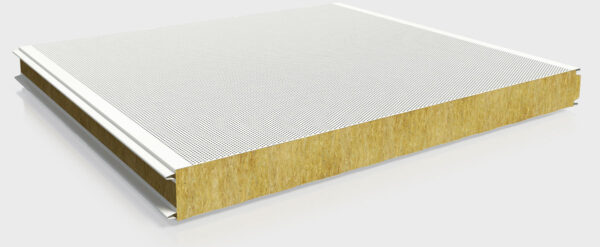

Facade and roof acoustic panels

Facade and roof acoustic panels are installed in the construction of buildings that must provide the required prescribed sound insulation values. They are also used for standard structural solutions where the aim is to achieve better sound insulation.

You can choose between facade and roof acoustic panels with the following technical characteristics:

Thicknesses from 50 mm – 200 mm
Panel width 1000 mm
Standard colours are: RAL 7016, RAL 3009, RAL 9002, RAL 8019; other colours are also possible, e.g.: RAL 9006, RAL 9007, etc.
