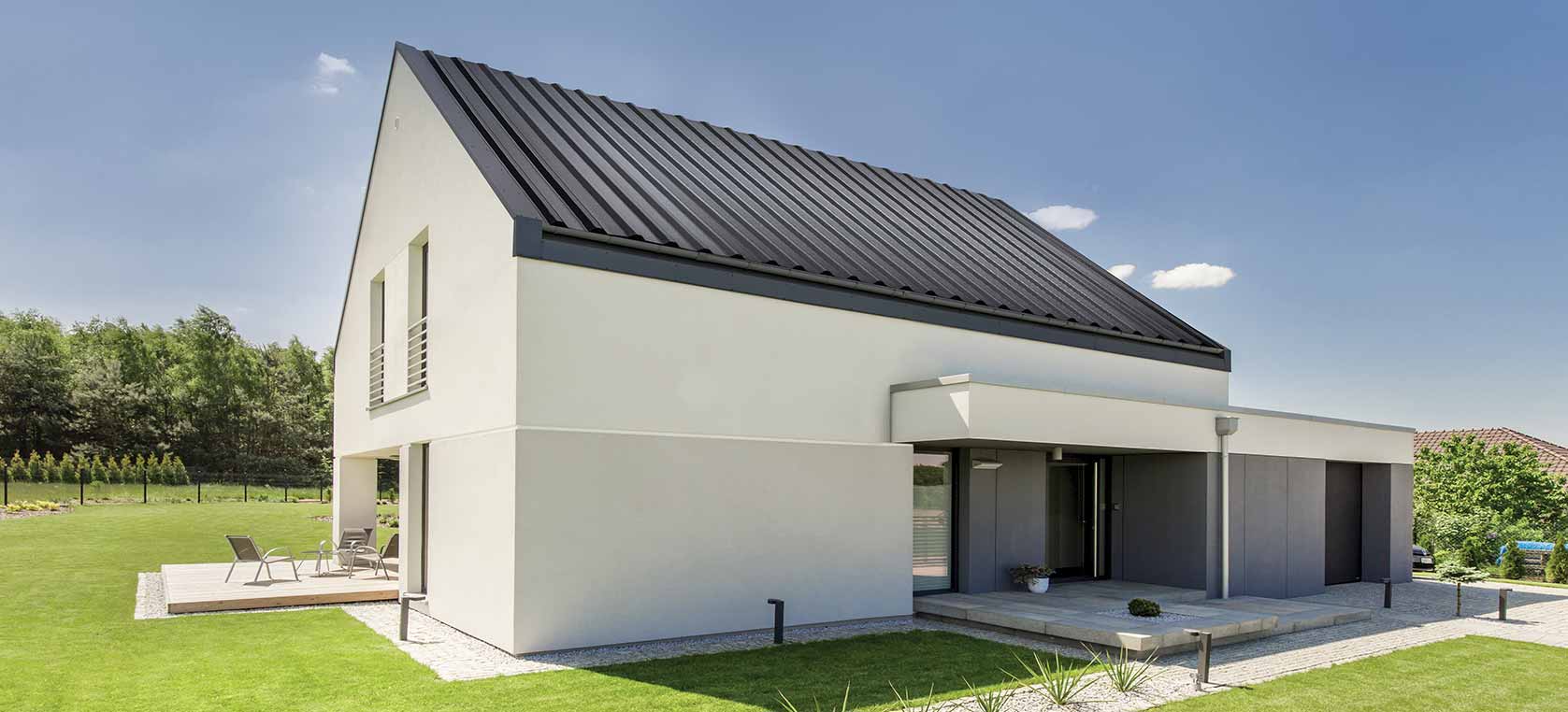

Trapezoidal roofing
Roofing made of galvanized steel sheet or aluminum, suitable for various residential buildings as well as industrial buildings. There are different profiles, such as trapezoidal or corrugated, which can be used for canopies, facades, walls, ceilings and even fences.
The main advantage of trapezoidal roofing is fast installation, low weight from 4.5–6.00 kg/m² and the flexibility of the material itself, which means it provides suitable protection even under stronger weather conditions, such as hail.
We offer profiled sheet-metal roofing with various zinc coatings from 140 g/m² to 275 g/m² and a diverse color palette in different sheet thicknesses.
Sheet-metal roofing is available with or without felt on the underside, which prevents condensation penetration, especially for constructions without an air gap.
Profile types
Trapez 40
Trapez 40 roofing is the most common profile among trapezoidal roofing sheets, suitable for various industrial buildings, residential buildings, canopies, ceilings, walls and facades. It has good resistance to strong wind and hail.
- Sheet width1050 mm
- Cover width1000 mm
- Min. pitch4 °
- Weight4,87 – 5,85 kg/m²
- Sheet thickness0,5 – 0,6 mm
Trapez 20
Unlike classic shapes, Trapez 20 roofing gives a building a more modern appearance due to its lower profile. Clean straight lines support contemporary architecture and the appearance of buildings. Due to its lower profile, the roofing is also equally suitable for facades.
- Sheet width1160 mm
- Cover width1100 mm
- Min. pitch6 °
- Weight4,50 – 5,10 kg/m²
- Sheet thickness0,5 – 0,6 mm
Tile shape
The roof tile-shaped roofing form is inspired by the appearance of classic roof tiles. It features more elegant lines, which makes it very suitable for residential buildings or canopies.
- Sheet width1195 mm
- Cover width1120 mm
- Min. pitch8 °
- Weight4,50 – 5,10 kg/m²
- Sheet thickness0,5 – 0,6 mm
Corrugated shape
Corrugated roofing belongs to classic roofing systems, also known as corrugated sheets. Due to its profile, it is especially suitable for renovating buildings covered with asbestos-cement sheets, and it also performs excellently as roofing for new builds and facades. Optionally, it can be supplied in different sinusoidal wave heights between 18 mm and 27 mm. It is also available in a perforated version.
- Sheet width1080 mm
- Cover width1000 mm
- Min. pitch5 °
- Weight4,87 – 5,85 kg/m²
- Sheet thickness0,5 – 0,7 mm
Corrugated with embossing
Unlike standard corrugated roofing, this roofing is more suitable as roof covering because of its attractive lines, which emphasize the building’s appearance. Due to its shape, the roofing is extremely strong and resistant to harsher weather conditions. It is suitable for new buildings, from residential or commercial to industrial buildings.
- Sheet width1080 mm
- Cover width1000 mm
- Min. pitch5 °
- Weight4,87 – 5,85 kg/m²
- Sheet thickness0,5 – 0,7 mm
Trapez 10
Trapez 10 roofing has the lowest profile among all trapezoidal roofing sheets. It is more affordable and especially suitable for facades, walls and fences. It can also be used as roofing for a minimalist roof profile appearance. An optimal combination of affordable price and top quality.
- Sheet width1220 mm
- Cover width1170 mm
- Min. pitch8 °
- Weight4,20 – 5,00 kg/m²
- Sheet thickness0,5 – 0,6 mm
Trapez 50
Trapez 50 roofing has the highest profile of all trapezoidal roofing sheets, which gives it exceptional strength. It is especially suitable for industrial buildings as well as residential buildings, facades, walls, ceilings and fences.
- Sheet width1047 mm
- Cover width1000 mm
- Min. pitch3 °
- Weight4,87 – 5,85 kg/m²
- Sheet thickness0,5 – 0,6 mm
Trapez 30
Trapez 30 roofing is a medium-height choice in terms of profile shape and contains several waves. It is especially suitable for residential buildings, as well as for various canopy applications or industrial buildings.
- Sheet width1060 mm
- Cover width1030 mm
- Min. pitch5 °
- Weight4,87 – 5,85 kg/m²
- Sheet thickness0,5 – 0,6 mm
Lux roofing
LUX is a modern roofing solution that adds the highest level of safety and elegance to every building. Due to its dense profile and special manufacturing technique, it is extremely strong and suitable both for new builds and renovated buildings.
- Sheet width1203 mm
- Cover width1160 mm
- Min. pitch8 °
- Weight4,50 – 5,10 kg/m²
- Sheet thickness0,5 – 0,6 mm
